Description
Overview
Quick Details
Type:
O2 gas analyzer, Portable
Certification:
CE
Customized support
OEM, ODM
Place of Origin:
Shandong, China
Brand Name
NA
Model Number:
JAY-120
Product name:
portable digital 100%.VoL Oxygen O2 gas analyzer
Certificate:
CE/ISO13485
Color:
White
Accuracy:
±2% F.S
Max Flow:
10LPM
Low battery voltage reminding
Yes
OEM
Avaliable

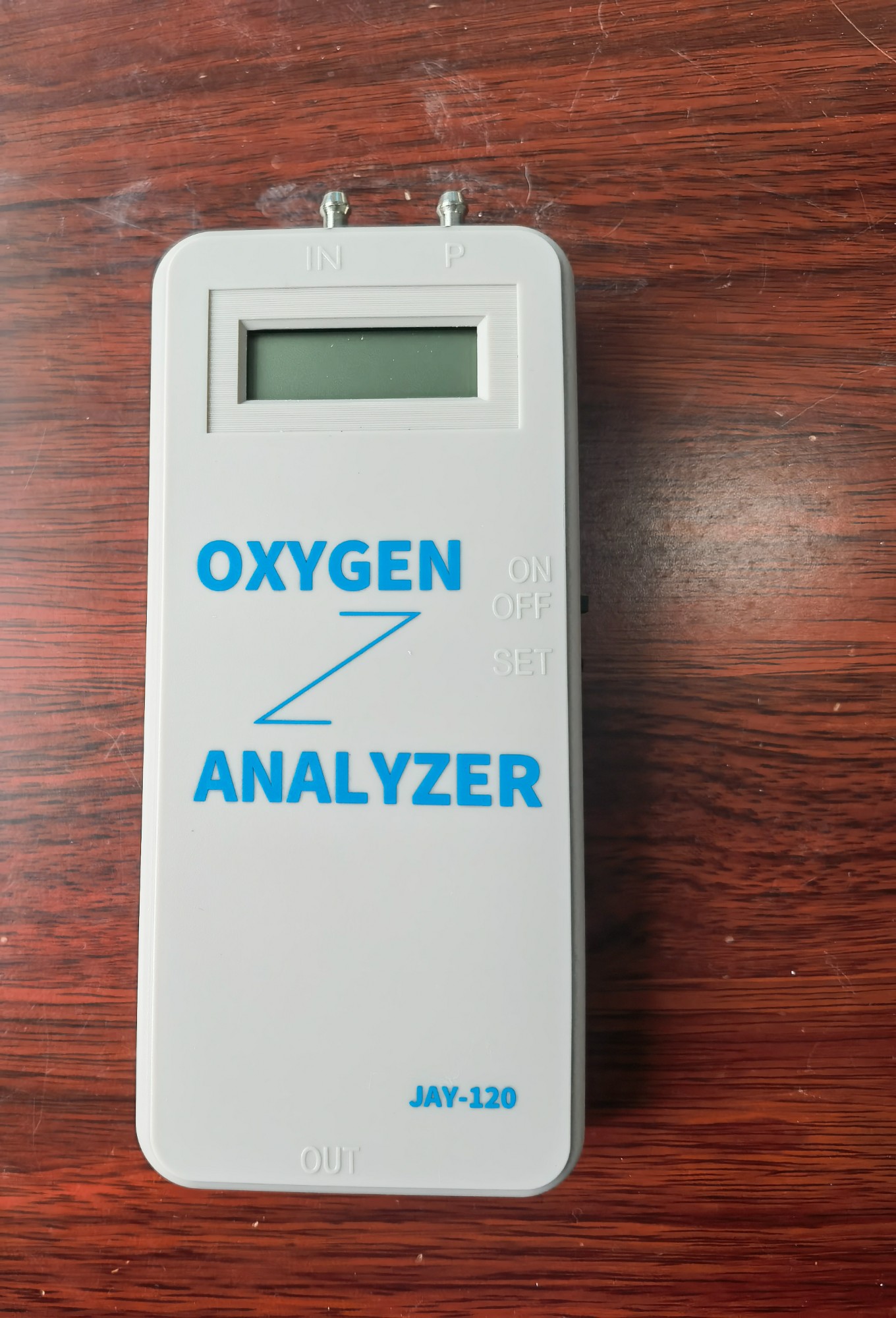

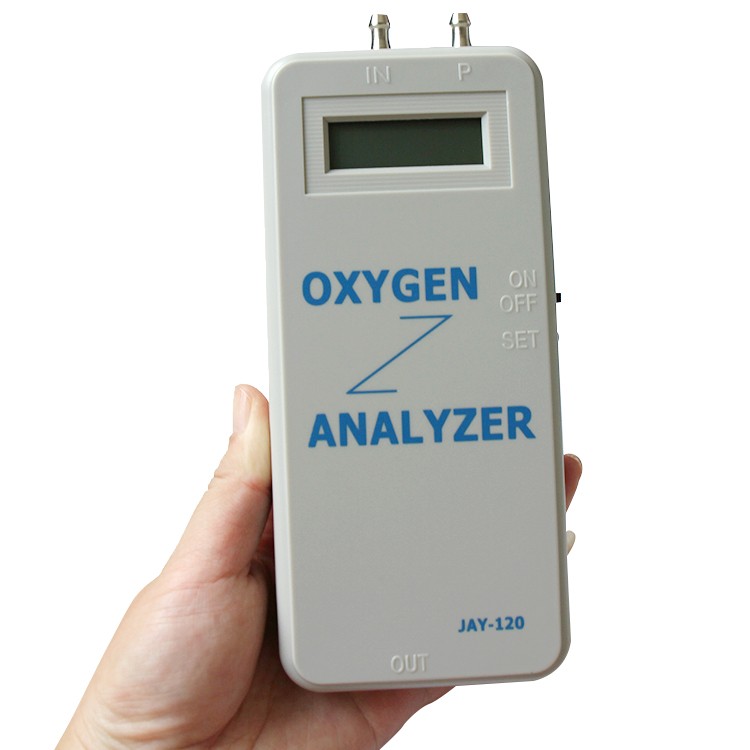

Oxygen concentrator accessory oxygen meterJAY-120
1.The oxygen analyzer is specially used for detecting the concentration of oxygen generated by molecular sieve oxygen concentrator.
2.The oxygen measurement we offer has high sensitivity.
3. Due to stable quality, our oxygen analyzer instrument can last over 5 years.
Technical Parameter
|
Model
|
JAY-120
|
|
Concentration Indication Range
|
21.0 % ~96.0 %
|
|
Measurement Accuracy
|
+/-2% F.S.
|
|
Operating Ambient Temperature
|
5~40 ℃
|
|
Operating Ambient Humidity
|
< 90%
|
|
Response Time
|
8s
|
|
Overall Dimension
|
83mm×31mm×190mm
|
|
Battery Model
|
6F22/9V tandem battery
|
|
Weight
|
250g with battery, 205g without battery
|
|
Max. Pressure
|
60PSI
|
|
Max. Flow
|
10L/min
|
