Description
Product Parameter
| Model |
JAY-3 |
| Flow rate | 0-10L/min |
| Purity | 93±3% |
| Outlet Pressure (Mpa) | 0.04-0.07 |
| Sound Level | ≤50db |
| Power | AC230V, 50Hz(AC220V/110V±10%, 50/60±1Hz are available) |
| Power Consumption | ≤480W |
| LCD display | Swith times, Operating pressure, Present Working Time, |
| Accumulating Time, presetting Time from 10mins to 40hours | |
| Alarm | Power failure alarm, High&Low pressure alarm |
| Net Weight | 26Kgs |
| Size (mm) | 365*375*600mm |
Optional:

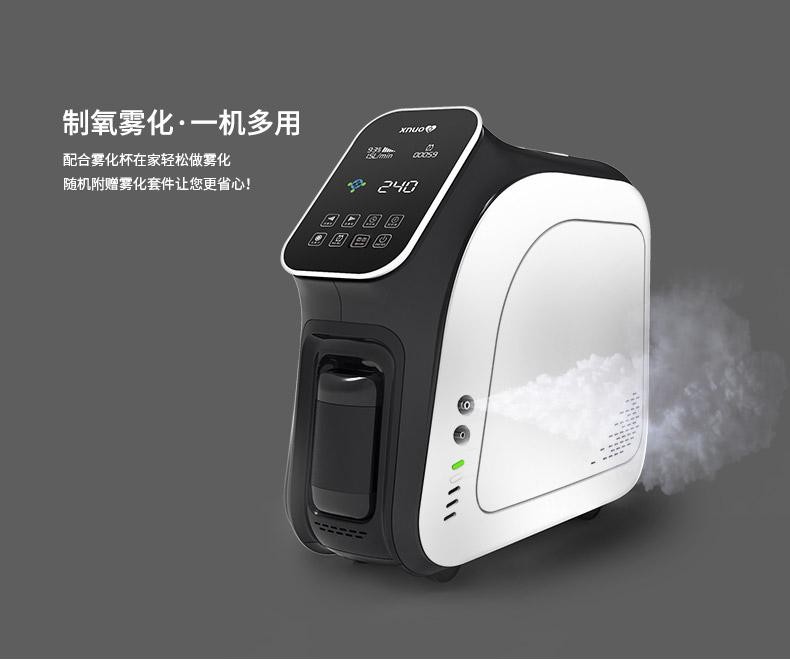

- Nebulizer(Atomization)
- Low purity alarm: when oxygen purity is above 82%, it will give green light; when the purity is blow 82%( 82% not included), it will give red light
- Maintenance alarm: alarm for maintenance after 3000 hours operation
- Alarm for high temperature inside systems above 50°C
- Pulse oximeter: fingertip pulse oximeter is available for monitoring patient oxygen saturation on site.
- Small LCD display: accumulating time; present working time presetting time.
Main Features
|
Features Window filter and inlet filters easy to replace and wash; The metal outlet is designed to be used with the humidifier adaptor; The easy dial flow control, makes setting the flow easy for any patients; Innovative big size LCD display convenient to view the operating parameters ; US humidifier bottle with 6 psi pressure enjoy with comfortable breathing oxygen; Inner case housing adopt Ceramics technique,non spray paint; Customized mute cotton make sure non pulverization phenomenon min 3 years; The inside pipeline use the Medical class silicone tube and nylon tube, more safe than industrial silicone tube and plastic tube, no pollution, no peculiar smell; Cooling system: copper tube and aluminum fins, compare with only aluminium or copper tube, better for heat dissipation and ensure the machine to continuously work for 24 hours without overheat interruption;
Flow Rate:0.5--5L/min Weight16Kgs Oxygen Concentration:93% (±3%) Power Consumption:≤ 350W
Outlet Pressure:6-10 psi (0.04-0.07 Mpa) Input Voltage:AC 230V/110V ± 10% Alarm:Power failure; high and low pressure; No flow; Low O2 Concentration OPI Alarm:Audible and Visual alarm at low oxygen concentration (<82%) |
Certificate
Packaging & Shipping
FAQ
Frequently Asked Questions
Find your questions from below or submit your questions from the submit box
1.Are you a manufacturing factory?
Yes,we are the professioanl manufacturing factory of PSA Oxyen Plant products; We have been focusing PSA Oxyen Plant equipment for more than 10 years, we have over 100 employees and over 50,000 square meters workshops.
2.Do you provide OEM or ODM service?
Yes,we provide both OEM service and ODM service, and Customer's logo or company name can be printed on products by stamping, printing, embossing, coating or sticker.
3.Can you produce according to the samples?
Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
4.How does your factory do regarding quality control?
Quality is priority. We always attach great importance to quality control from the very beginning to the end of the production. Every product will be fully assembled and carefully tested before it's packed for shipment.
5.Do you provide samples ?
Yes, We can supply the sample, the cost of sample and freight fee will be charged.But when we received your formal order, the sample fee will be refund to you.
6.What is your terms of payment ?
TT or L/C at sight
If you have another question, Please feel free to Contact us
